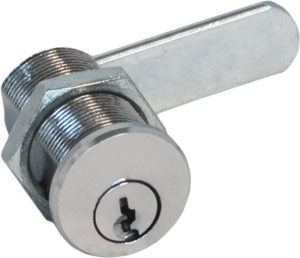

Universal pin tumbler lock with offset rotor
Universal pin tumbler lock with standard key. Pin tumbler locks are the premium version of their plate-cylinder cam locks: high-quality and durable materials, greater resistance to burglary attempts, elegant design, and a refined internal mechanism determine their value.
Unit min. Retail: 20
Unit min. Industry: 300
FEATURES
- 90° clockwise or 90° counterclockwise versions can be made, for minimum quantities of 500 pieces per model.
- Custom dimensions are also possible for a min. order quantity of 500 pcs.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 20 | 14,5 | 64500 | 90° + 90°, 1 key removal position | Retail | 20 |
| 20 | 18 | 62800 | 90° + 90°, 1 key removal position | Retail | 20 |
| 20 | 21 | 61000 | 90° + 90°, 1 key removal position | Retail | 20 |
| 20 | 26 | 62250 | 90° + 90°, 1 key removal position | Retail | 20 |
| 20 | 31 | 62955 | 90° + 90°, 1 key removal position | Retail | 20 |
| 20 | 36 | 63205 | 90° + 90°, 1 key removal position | Retail | 20 |
| 20 | 41 | 63255 | 90° + 90°, 1 key removal position | Retail | 20 |
EQUIPMENT INCLUDED
- 2 brass keys SCHG05060
- Q7 cams with 7mm squared attachment hole (Q7) 43mm apart.
- Nut
OPTIONALS
- Straight cams with various working lengths
- Cranked cams with various cranks and working lengths
- Notched cams
- Washers and gaskets
- Customized logo on request
- Keyed alike (KA)
- Alternative finishes
CATEGORIES
Automation and home automation | Automotive and transport | Banking and post office | Cam locks | Camlock for switches | DPI door closet locks | Electromechanical industry locks | Furniture locks | Gaming machine locks | GDPR-compliant cabinet lock | Gun rack locks | Locking systems for industry | Locks for phytopharmaceutical cabinets | Locks for safe deposit boxes | Machine locks | Professional furniture locks | Refrigerated body locks | Security furniture locks | Security locks | Standard keyed | Transportation locks | Universal pin tumbler locks
The universal pin tumbler lock has an internal mechanism that is activated when the key is inserted, which aligns the pins according to a precise position, enabling the release of the barrel and the opening or closing movement. Pin-cylinder cam locks are the premium version of their plate-cylinder counterparts: high-quality materials, greater resistance to burglary attempts, elegant design, and a precise internal mechanism increase their value.
Both the pins and the outer body are made of brass; the 7-mm square terminal also allows the installation of a variety of straight, cranked and hook cams, as well as multi-point cams to move translating rods (up/down), or even actuators for multiple and centralized locking of drawer units.
Universal cam locks with standard key are suitable for infrastructures that regulate access to a premises, and are particularly suitable in outdoor applications such as on parking meters and vending machines, fuel dispensers, or in the vending industry.
RSN
Summary framework
| Where to install | Hinged doors, Drawers and chests of drawers, Standard Cam Locks |
|---|---|
| Key type | Standard key (not reversible) |
| Blocking system | Straight cam, Hook cam, Cranked cam, Sliding rods, Actuator pin for drawer units |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 20,2 |
| Key extraction positions | Central position only (c) |
| Finishing | Nickel plating |
| Fixing | Nut |
| Length | 14,5, 18, 21, 26, 31, 36, 41 |
| Manufacturing material | Brass |
| Internal mechanism | Pin tumbler cylinder |
| Direction of rotation | 90° clockwise + 90° counterclockwise |
| Lock type | Lever Locks, Lifting pin locks (actuator), Universal locks |
| Product type | Locks |
