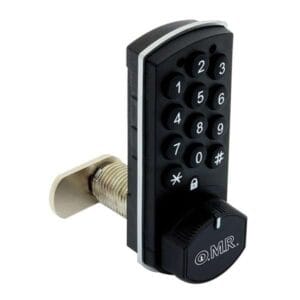

Electronic lock PIN + NFC
Electronic smart lock for lockers, filing cabinets, locker rooms, luggage storage, etc. Powered by button cell battery (lasting up to 10 years). Does not require cables for installation. Can be opened by entering the numeric code on the keypad and via NFC via app. Access control, event log, single or multi-user mode, and more. Discover Hellock for smart locking design and reliability!
Unit min. Retail: 10
Unit min. Industry: 100
FEATURES
- The lock can be either applique- or flush-mounted.
- High security thanks to the block function (which is activated after 3 consecutive wrong PIN codes), thus preventing unauthorized access.
- Low battery warning with sound and light notifications
- Certificates: IP54, RoHS 2011/65/EU and 28300.
- The provisions on electronic waste disposal comply with the regulations PAH AfPS GS 2014:01
- It is possible to set all locking/unlocking parameters and fully manage all functions via the dedicated free-of-charge smartphone/tablet App.
- After creating a task via the App, you just need to press a button to load all the settings and changes.
- Alternatively to silver, the frame is also available with black finish.
PRODUCT CODES
| L | CODE | NOTES | Channel | Minimum qty |
| 12 | HL12XX2/VN-s | vertical - low knob - black | Retail | 10 |
| 12 | HL12XX2/VB-s | vertical - low knob - white | Retail | 10 |
| 12 | HL12XX2/ON-s | horizontal - right knob - black | Retail | 10 |
| 12 | HL12XX2/OB-s | horizontal - right knob - white | Retail | 10 |
| 25 | HL25XX2/VN-s | vertical - low knob - black | Retail | 10 |
| 25 | HL25XX2/VB-s | vertical - low knob - white | Retail | 10 |
| 25 | HL25XX2/ON-s | horizontal - right knob - black | Retail | 10 |
| 25 | HL25XX2/OB-s | horizontal - right knob - white | Retail | 10 |
EQUIPMENT INCLUDED
- Nut
- Fixing screw
- Straight cam working length 40 mm
OPTIONALS
- Fixing hole adapters
- Straight cams with various working lengths
- Cranked cams with various cranks and working lengths
- Notched cams
- Actuators
- Washers and gaskets
- Glass door plates
- Hardware options: PIN, RFID, HSC, BLUETOOTH
- Striker plates
CATEGORIES
Architecture, urban planning and design | Cam locks | Combination locks | Door locks | Door locks | DPI door closet locks | Electronic locks for cabinets, drawers, doors | Furniture locks | GDPR-compliant cabinet lock | Hinged doors | Hospitals and healthcare facilities | Hotels and tourist accomodations | Letterbox locks | Lockers for lockers | Locks for lockers | Locks for phytopharmaceutical cabinets | Locks for vending machines | Reprogrammable locks | rLocks for mailboxes.
The HELLOCK electronic lock consists of a high-performance engineering plastic lock body, containing the electronic device, and the rear panel that is moved, once the impulse is received, to effect locking or opening via the cam. With an exceptionally long button battery life that provides up to 10 years of operation, this lock is economical and environmentally sustainable. It is the world’s smallest electronic lock with CPU! It is suitable for the installation oudoors as it is IP54 certified. Available in different technologies(Code, NFC, RFID Mifare, RFID Proximity, HSC, Bluetooth). It also features 9 different programming options, as well as private and multi-user modes. Two different finishes (white or black), horizontal or vertical, with upper knob or lower knob. 3 access levels: user, service and master. Thanks to the terminal with 7 mm square you can choose from hundreds of different straight or cranked multi-point cams, install the sling bar to move rods. Installable and configurable in minutes on all types of doors, cabinets, drawers and chests of drawers, it can be installed in place of the most common mechanical locks without having to modify the holes already present.
An ideal locking system in office furniture, community furniture even where it is necessary to perform access control, in hospital facilities, libraries, universities, in security lockers, for b&b’s and room rentals, as well as in swimming pools or gyms. Managing thousands of locks has never been easier!
| Open the YouTube playlist by clicking on this symbol |  |
Summary framework
| Access technology | Opening using PIN code, NFC (via App) |
|---|---|
| User mode | Multi-user mode, Single user mode |
| Advanced | Service password |
| Where to install | Hinged doors, Drawers and chests of drawers |
| Key type | Numeric combination, Bluetooth, RFID, hSC |
| Blocking system | Straight cam, Hook cam, Cranked cam, Rotating rods, Actuator pin for drawer units |
| Fixing hole | 16,5 |
| Finishing | Black, White |
| Fixing | Nut |
| Length | 12, 25 |
| Manufacturing material | Plastic, Silicone, Steel |
| Direction of rotation | 90° clockwise + 90° counterclockwise |
| Lock type | Electronic locks |
| Product type | Locks |
| Orientation | Horizontal, Vertical |
