Cam lock with oversize head

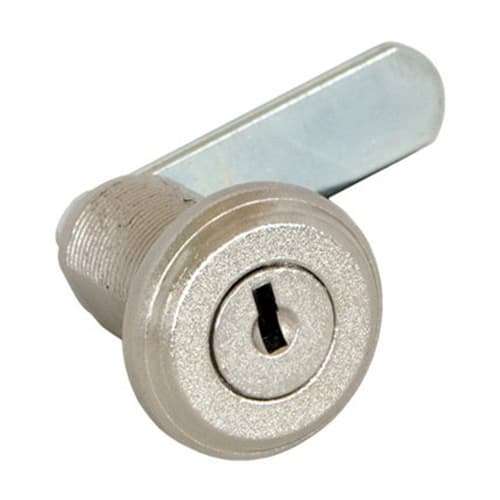

Universal Wafer tumbler cam locks with plate-cylinder mechanism and oversized head, friendly called pawl, are among the most popular locks in many areas. The increased size of the cylinder head provides more strength to the lock, increasing its strength and security.
Available in keyed different(KD) or keyed alike(KA).
Unit min. Industry: 50
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum qty |
| 19 | 25 | 163420 | 90° clockwise, 1 extraction, head 31 mm | ||
| 19 | 28 | 165595 | 90° clockwise, 1 key removal position, head 31 mm | Industry | 50 |
EQUIPMENT INCLUDED
- 2 brass keys SCHG05082
- Cam piercing: square 7mm, working length 43mm
- Nut
OPTIONALS
- Straight cams various working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Washers and gaskets
- Keyed alike (KA)
- Folding capped keys
- Alternative finishes
- Master key (MK)
CATEGORIES
Architecture, urban planning and design | Automation and home automation | Balcony cabinet locks | Banking and post office | Cabinet locks | Cam locks | Camlock for switches | Detachable barrel locks | Dispenser locks | Door locks | Door locks | DPI door closet locks | Electric panel side door locks | Electromechanical industry locks | Furniture locks | Gaming machine locks | GDPR-compliant cabinet lock | Gun rack locks | Hinged doors | Hospitals and healthcare facilities | Industrial cabinet locks | Letterbox locks | Lockers for lockers | Locking systems for industry | Locks for automatic warehouses | Locks for front cabinet doors | Locks for hazardous substances cabinets | Locks for lockers | Locks for phytopharmaceutical cabinets | Locks for safe deposit boxes | Machine locks | Mailbox locks | Master key locks | Parcel locker locks | Professional furniture locks | Professional trolley locks | rLocks for mailboxes. | Security furniture locks | Security locks | Signboard locks | Ski locker locks | Universal Wafer Cam locks | Waterproof/stainless locks
The universal wafer-cylinder cam locks with plate-cylinder mechanism and oversized head, friendly called pawl, is among the most popular locks in all areas. The nickel-plated brass key moves the central 5-plate-cylinder rotor placed inside a zinc alloy box called a stator, bushing or body. The double D fixing hole prevents the rotation of the cam lock body when installed. Through operation of the rear cam, locking or opening of the cam lock is determined. The increased size of the cylinder head provides more strength to the lock, increasing its strength and security.
The body and the barrel of the cam lock are made of zinc alloy, the cam is made of steel. The 7 mm cam connection also allows the installation of several straight, cranked or notched cams, as well as of 2-point cams to operate rods. Various versions allow different rotations, door thicknesses from 0.5 to 27 mm, and key removal in open and closed (or only one of the two cases). Fully threaded body allows fastening by nut, but also by horseshoe clip or clip forquick installation on steel, aluminum or plastic sheets.
Universal cam lock with oversized head is ideal for installations in office furniture, locker cabinets, metal doors, melamine cabinets, HPL cabinets, MDF cabinets, doors, carpentry items, sheet metal boxes, vending and carwash systems, machinery, pulpits, and actuator panels.
Summary framework
| Where to install | Hinged doors |
|---|---|
| Key type | Standard key (not reversible) |
| Blocking system | Straight cam, Hook cam, Cranked cam, Sliding rods |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 19,2 |
| Key extraction positions | Only with lock closed (1) |
| Fixing | Horseshoe clip, Nut |
| Length | 25, 28 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | Wafer tumbler camlocks |
| Direction of rotation | 90° clockwise – Right Hand |
| Lock type | Lever Locks |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum, Wood and derivatives (MDF, HPL, etc.) |
