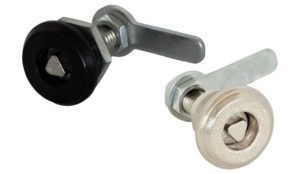

Adjustable locking triangle shape 6
The 1/4-turn adjustable triangle 6 budget lock consists of a zinc alloy body inside which is a triangle-shaped barrel under spring that, moved by a key, rotates, determining opening or closing.
Unit min. Industry: 50
PRODUCT CODES
| Ø | FIXING HOLE | ITEM NO. | NOTE | Channel | Minimum Qty |
| 20 | A | 163491 | 90°, 6 mm Triangle, nickel-plated | Industry | 50 |
| 20 | A | 163413 | 90°, 6 mm Triangle, black | Industry | 50 |
| 20 | B | 165565 | 90°, 6 mm Triangle, nickel-plated | Industry | 50 |
| 20 | B | 163374 | 90°, 6 mm Triangle, black | Industry | 50 |
EQUIPMENT INCLUDED
- Cam piercing: oval, working length 38
- Nut
OPTIONALS
- Straight cams various working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Washers and gaskets
- Socket keys
- Alternative finishes
CATEGORIES
1/4-turn budget locks | Automation and home automation | Automotive and transport | Cam locks | Door locks | Electric panel side door locks | Electromechanical industry locks | Industrial cabinet locks | Locking systems for industry | Locks for automatic warehouses | Locks for electrical panels | Locks for front cabinet doors | Professional furniture locks | Transportation locks
The 1/4-turn adjustable triangle 6 budget lock consists of a zinc alloy body inside which is a triangle-shaped barrel under spring that, moved by a key, rotates, determining opening or closing.
The terminal also allows installation of a variety of straight, cranked and hook cams . The enlarged head helps make the product more secure and solid, as well as better match the door design and installation hole. The 1/4-turn box is adjustable with a threaded body that allows cam striker adjustment from 22.5 to 36 mm. Available in two variants for square or round installation hole (see images: Dima A, Dima B).
The budget lock with stator shape is suitable for applications such as control panel doors, carpentry structures, industrial machinery, stainless steel doors, access panels to electronic components in machinery, electrical panels, inspection compartments of transportation equipment such as buses, trains, construction machinery and forklifts, medical equipment maneuvering panels, light panels or billboards.
Summary framework
| Blocking system | Straight cam, Hook cam, Cranked cam, Sliding rods, Personalized |
|---|---|
| Jig | A, B |
| Fixing hole | 20 |
| Finishing | Black, Nickel plating |
| Fixing | Nut |
| Where to install | Standard Cam Locks |
| Insert shape | Triangle 6 mm |
| Key type | Triangular Keys |
| Manufacturing material | Die-cast metal |
| Product type | Locks |
| Internal mechanism | 1/4 turn on key pression |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum |
