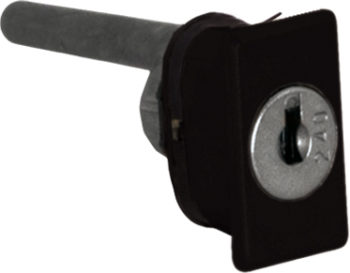

Pedestal lock with lifting pin – Oval fixing hole and oval pin connection
The oval lock with actuator is made of a housing which encases a plate-cylinder barrel. It is made of die-cast zinc alloy, it features an actuator, which triggers the central locking of drawers through a 180° rotation.
The lock can be quickly installed using both a horseshoe clip and a snap-in fix system. The oval shape makes it possible to install it also in narrow spaces, such as front surfaces or profiles of metal trolleys and filing cabinets. The model with removable barrel allows to remove or replace the barrel without damaging furniture or the lock. Folding keys are also available. The installation of anti-tilt devices offers higher safety preventing the accidental opening of drawers when the tool trolley is moved. It also prevents multiple drawers from simultaneously opening at the same time, which might cause the trolley to fall.
The oval lock with actuator is designed for fitted vehicles, metal furniture, office pedestals, workshop pedestals used to secure valuable tools .
- Oval fixing hole, plate cylinder
- 2 brass keys: SCHG05082
- Snap-in fix
- 45 mm actuator
- Keyed different (KD)
- Snap-in fix
- Removable barrel also available
- The actuator lenght can be customized based on the customer's needs
- The installation of the anti-tilt device prevents the simulataneous opening of 2 or more drawers or the accidental opening of drawers when moving the pedestal.
|screw||163395||180°, oval fixing hole|
|C-clip||163390||180°, oval fixing hole|
|screw||163400||180°, square 7 mm cam connection|
|screw||165745||180°, oval fixing hole with "click" mechanism|
|screw||165746||180°, square 7 mm cam connection with "click" mechanism|
|screw||165764||180°, removable barrel with oval fixing hole|
