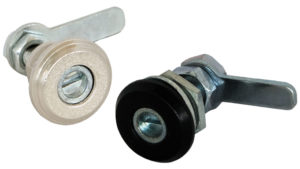

Adjustable locking screwdriver cut shape
The 1/4-turn adjustable “screwdriver cut” budget key lock consists of a zinc alloy body inside of which is a spring-loaded spring-loaded budget key lock barrel that, moved by a screwdriver, rotates, determining opening or closing.
Unit min. Industry: 50
FEATURES
Open using coin or screwdriver
PRODUCT CODES
| Ø | FIXING HOLE | ITEM NO. | NOTE | Channel | Minimum Qty |
| 20 | A | 165568 | 90°, screwdriver groove, nickel-plated | Industry | 50 |
| 20 | A | 163412 | 90°, screwdriver groove, black | Industry | 50 |
| 20 | B | 163496 | 90°, screwdriver groove, nickel-plated | Industry | 50 |
| 20 | B | 163373 | 90°, screwdriver groove, black | Industry | 50 |
EQUIPMENT INCLUDED
- Cam piercing: oval, working length 38
- Nut
OPTIONALS
- Straight cams various working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Washers and gaskets
- Alternative finishes
CATEGORIES
1/4-turn budget locks | Automation and home automation | Automotive and transport | Cam locks | Electric panel side door locks | Electromechanical industry locks | Locking systems for industry | Locks for automatic warehouses | Locks for electrical panels | Locks for front cabinet doors | Professional furniture locks | Transportation locks
The 1/4-turn adjustable “screwdriver cut” budget key lock consists of a zinc alloy body inside of which is a spring-loaded spring-loaded budget key lock barrel that, moved by a screwdriver, rotates, determining opening or closing.
Several straight cams, cranked cams or notched cams are available. The oversize cylinder head makes the lock stronger and more secure and it better integrates with the door design as well as with the square fixing hole. The quarter turn camlock is adjustable thanks to the threaded housing, which allows to adjust the cam locking point from 22,5 to 36 mm. Two models are available, for square and round fixing hole.
The budget lock with cut-screwdriver stator is suitable for applications where such security is required that this solution is suitable for, for example: compressors, industrial plants, the doors of control panels, water meters, gas meters, stainless steel doors, street furniture, dustbins, electrical panels, light panels, billboards or on the bodywork of agricultural machinery and forklifts.
Summary framework
| Blocking system | Straight cam, Hook cam, Cranked cam, Sliding rods, Personalized |
|---|---|
| Jig | A, B |
| Fixing hole | 20 |
| Finishing | Black, Nickel plating |
| Fixing | Nut |
| Where to install | Standard Cam Locks |
| Insert shape | screwdriver |
| Key type | Screwdriver key |
| Manufacturing material | Die-cast metal |
| Internal mechanism | 1/4 turn on key pression |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum |
