Double barb – 3 mm pin. Clip fastening
Double barb – 3 mm pin. Clip fastening

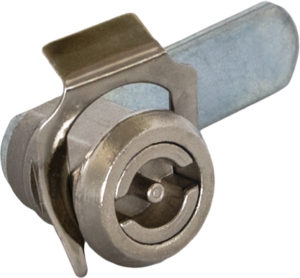

The budget lock – quarter-turn pin 3 – is composed of a zinc alloy body inside which is a spring-loaded budget lock rotor that, moved by a key, rotates, determining opening or closing.
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 19 | 20 | 165556 | 90°, Double barb (P3), fork pos. 1, 2, 5, 6, 7, 10 |
| 19 | 20 | 165557 | 90°, Double barb (P3), fork pos. 3, 4, 7, 8, 11, 12 |
EQUIPMENT INCLUDED
- Cam piercing: square 7, working length 43
- Horseshoe clip
OPTIONALS
- Straight cams with several working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Actuators
- Budget lock key
- Adapters
- Alternative finishes
CATEGORIES
The quarter turn double barb tool operated cam lock is made of a zinc alloy housing encasing a barrel which determines the unlocking or locking when operated by the key. The 7-mm square terminal also allows the installation of a variety of straight, cranked, or hook levers, not to mention the possibility of applying multi-point cams for rod movement.
The quarter turn cam lock can also be made in technopolymer, a special glass-fiber plastic featuring the same mechanical properties, weather and corrosion resistance as zinc alloy, as well as perfect integration with the piece of furniture thanks to the wide range of colours available.
The double barb tool operated cam lock is suitable for applications which do not require a high security level, with the guarantee that the most common budget lock keys like triangle or square keys cannot be used. Clip fastening allows quick installation on industrial machinery doors, stainless steel doors, access panels to electronic components in machinery, electrical panels, medical equipment operating panels, light panels or on the bodywork of agricultural machinery and forklifts.
Summary framework
| Key type | Double Barb – 3 mm Pin |
|---|---|
| Manufacturing material | Die-cast metal |
| Fixing hole | 19 |
| Length | 20 |
| Internal mechanism | 1/4 turn on key pression |
| Finishing | Nickel plating |
| Blocking system | Cam for translating rods, Cranked cam, Hook cam, Personalized, Straight cam |
| Product type | Locks |
| Fixing | Horseshoe clip |
| Horse-shoe clip | Thickness (door, drawer): 3, 4, 7, 8, 11, 12 mm, Thickness (door, drawer, etc.): 1, 2, 5, 6, 9, 10 mm – Standard |
| Insert shape | 3 mm Pin |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum |
