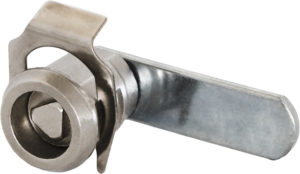

Triangle 6 socket key lock with horseshoe clip
The 1/4-turn triangular budget lock with horseshoe clips consists of a zinc alloy body inside of which is a spring-loaded budget key lock barrel that, moved by a key, rotates, determining opening or closing.
Unit min. Industry: 100
FEATURES
- The locking features different horseshoe clips for both 1-2 or 5-6 or 9-10 mm thick sheets and 3-4 or 7-8 or 11-12 mm thick sheets.
- The compression system prevents the cam from moving with simple vibrations. Press with the key to unlock.
- The installation of an inner O-ring protects from the ingress of dirt and water under IP65 regulation.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 19 | 20 | 165550 | 90°, triangle 6 mm, clip positions 1,2,5,6,9,10 | Industry | 100 |
| 19 | 20 | 165551 | 90°, triangle 6 mm, clip positions 3,4,7,8,11,12 | Industry | 100 |
EQUIPMENT INCLUDED
- Q7 cam with 7mm squared attachment hole (Q7), working length 43mm
- Horseshoe clip
OPTIONALS
- Straight cams with various working lengths
- Cranked cams with various cranks and working lengths
- Notched cams
- Multi-point cams
- Washers and gaskets
- Socket keys
- Alternative finishes
- OR for IP65 protection
CATEGORIES
1/4-turn budget locks | Architecture, urban planning and design | Boat locks | Cabinet locks | Cam locks | Dispenser locks | Ecology / recycling | Electric panel side door locks | Electromechanical industry locks | Locking systems for industry | Locks for automatic warehouses | Locks for electrical panels | Locks for front cabinet doors | Professional furniture locks | Transportation locks | Water, air, gas (for industries) | Waterproof/stainless locks
The 1/4-turn triangular budget lock consists of a zinc alloy body inside which is a spring-loaded budget lock barrel that, moved by a key, rotates, determining opening or closing.
The 7 mm square terminal also allows the installation of a variety of straight, cranked and hook cams, not to mention the possibility of applying multi-point cams for rod movement or actuators for multiple and centralized locking. The quarter-turn cam lock can also be made of technopolymer, a special “metal plastic” that provides mechanical performance on par with aluminum alloy, weather and corrosion resistance, and perfect integration with the finished product, thanks to the wide range of colors available.
Socket key lock with quick-fix clips (also called horseshoe clips) allows for quick application on applications where simple access management is required, such as electrical panels, interior and exterior compartments of transportation vehicles such as trains or buses, meter boxes, bulletin boards, or digital signage devices such as totems or digital screens.
Summary framework
| Blocking system | Straight cam, Hook cam, Cranked cam, Sliding rods, Personalized |
|---|---|
| Fixing hole | 19 |
| Fixing | Horseshoe clip |
| Finishing | Nickel plating |
| Horse-shoe clip | Thickness (door, drawer): 3, 4, 7, 8, 11, 12 mm, Thickness (door, drawer, etc.): 1, 2, 5, 6, 9, 10 mm – Standard |
| Where to install | Standard Cam Locks |
| Insert shape | Triangle 6 mm |
| Key type | Triangular Keys |
| Length | 20 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | 1/4 turn on key pression |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum |
