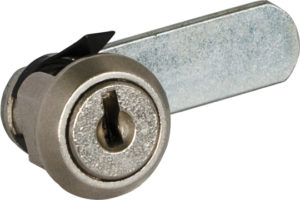

Universal cam lock quick fastening
FEATURES
- Installing the lock takes only a few seconds: simply push it into the hole.
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 19 | 20 | 160670 | 90° clockwise, 1 key extraction positions |
| 19 | 20 | 163365 | 90° clockwise, 2 key extraction positions |
| 19 | 20 | 160410 | 180°, 2 key extraction positions |
SUPPLIED.
- 2 brass nickel plated keys SCHG05082 with key number stamped on the key head
- Q7 cam with 7mm squared attachment hole (Q7), working length 43mm
- Snap spring
OPTIONALS
- Straight or cranked cams with various working lengths
- Notched cams
- Multi-point cams with two- or three-point locks
- Actuators for central locking systems
- Master key (MK)
- Keyed alike (KA)
- Folding keys
- Alternative finishes
CATEGORIES
The snap-spring quick-fix clip lock has a wafer-cylinder cam locks mechanism and is among the most popular locks in all areas. The body has a snap spring (push in, lugs snap, click, installed!) forquick installation on steel, aluminum or plastic plates. Alternatively, a threaded or slotted body version is available for installing a horseshoe clip or clip.
The nickel-plated brass key moves the central 5-plate-cylinder rotor placed inside a zinc alloy box called a stator, bushing or body. The double D fixing hole prevents the rotation of the cam lock body when installed. The cam rotation determines the locking or the unlocking.
The body and cam lock rods are made of zinc alloy, while the cam is made of steel. The 7-mm square terminal also allows installation of straight, cranked and hook cams, as well as multi-point cams for moving translating rods (up/down). Universal cam locks are ideal for installations in metal office and workshop furniture, locker cabinets, steel doors and hatches, carpentry items for carwash and machinery, and sheet metal boxes.
Synthetic view
| Where to install | Standard Cam Locks, Hinged doors, Drawers and chests of drawers |
|---|---|
| Key type | |
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Straight cam |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | |
| Key extraction positions | |
| Finishing | Nickel plating |
| Fixing | Snap-in fix |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Direction of rotation | |
| Lock type | |
| Product type |
You may also like…
-
Universal Plate-cylinder Cam Lock Ø 19
Chiedi info -

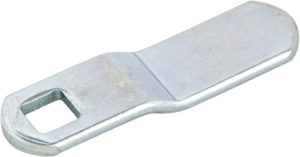

Cranked cams – Square 7mm terminal
