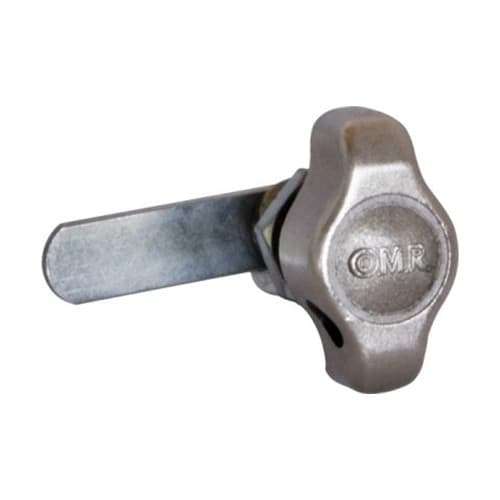

Latchlock for padlock
FEATURES
- Telling a right-hand door from a left-hand door is very easy: facing the cabinet, if the hinges are installed on the right, you will need a right-hand latchlock, viceversa if the hinges are installed on the left.
- Also available the latchlock model for seal application.
- Thanks to the anti-rotation plate, it is possible to install the latchlock also in a round fixing hole.
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 19 | 10 | 165798 | 90°, for right door |
| 19 | 10 | 165799 | 90°, for left door |
| 19 | 25 | 163380 | 90°, for right door |
| 19 | 25 | 163381 | 90°, for left door |
| 19 | 28 | 165644 | 90°, for right door |
| 19 | 28 | 165645 | 90°, for left door |
WHAT'S INCLUDED
- Q7 cam with 7mm squared attachment hole (Q7), working length 43mm
- Nut
OPTIONALS
- Straight cams with various working lengths
- Cranked cams with various cranks and working lengths
- Notched cams
- Multi-point cams
- Actuators
- Washers and gaskets
- Alternative finishes
- Anti-rotation plate
- Padlock
CATEGORIES
Latchlock for padlock in zinc alloy suitable for 30 and 40 mm padlocks (shackle diameter 5-7 mm). Thanks to the several cylinder lengths available, it is possible to lock both metal and wooden furniture. The handy, customizable handle allows the cam or rear rods to be moved; once the padlock is inserted, the handle is locked in the closed position, preventing rotation.
The latchlock for padlock is also available in technopolymer, a special glass-fiber plastic featuring the same mechanical properties, weather and corrosion resistance as zinc alloy, as well as perfect integration with the piece of furniture thanks to the wide range of colours available. The 7-mm square terminal also allows the installation of a variety of straight, cranked and hook cams, not to mention the possibility of applying multi-point cams for rod movement.
The latchlock is the perfect choice for lockers, hospitality furniture, hospital and healthcare furniture, furniture for spa / fitness centres / swimming pools, enclosures for technical rooms.
Synthetic view
| Key type | |
|---|---|
| Blocking system | Cam for translating rods, Cranked cam, Hook cam, Latch (spring lever), Personalized, Straight cam |
| Fixing hole | |
| Finishing | Nickel plating |
| Fixing | Nut |
| Where to install | |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Direction of rotation | 90° clockwise – Right Hand, 90° counterclockwise – Left hand |
| Product type |
You may also like…
-
Electronic lock PIN + NFC
0,00€Chiedi info -

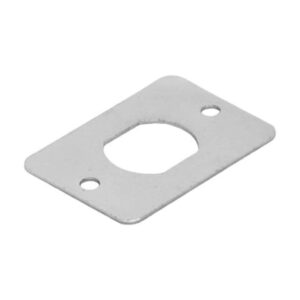

Anti-rotation plate
0,00€Chiedi info -
Latchlock for padlock – With seal hole
0,00€Chiedi info -

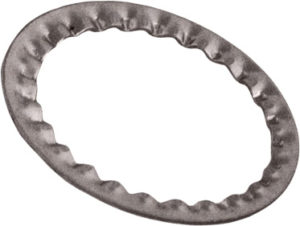

Spiked washer
