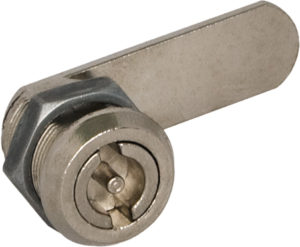

Double barb camlock – 3 mm Pin
FEATURES
- The compression mechanism provides good protection from vibration and prevents the cam from unduly rotation. Press with the key to unlock.
- Application of an inner OR ring for dust and splash protection to IP65 standards is possible.
- If you choose to install the item SMAN04903, you will have a practical handle to open and close.
- The adapter SVAR03715 allows to change the fixing hole for the quarter turn lock.
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 19 | 20 | 161050 | 90°, Double barb (P3), nut |
| 19 | 20 | 165556 | 90°, Double barb (P3), fork pos. 1, 2, 5, 6, 7, 10 |
| 19 | 20 | 165557 | 90°, Double barb (P3), fork pos. 3, 4, 7, 8, 11, 12 |
SUPPLIED.
- Cam Square 7 mm, working length 43 mm
- Nut
OPTIONALS
- Straight cams with different working length
- Cranked cams with different cranks and working length
- Notched cams
- Multi-point cams
- Actuators
- Washers and gaskets
- Adapter SVAR03715
- Handle SMAN04903
- Budget lock keys SCHD05788 or SCHD05745
- Alternative finishes
- OR for IP65 protection
CATEGORIES
The quarter turn double barb tool operated camlock is made of a zinc alloy housing encasing a barrel which determines the unlocking or locking when operated by the key.
The square 7 mm cam connection allows to install several straight cams, cranked cams or notched cams, as well as multi-point cams to operate rods or actuators for central locking systems.
The quarter turn camlock can also be manufactured in technopolymer, glass-fiber plastic featuring the same mechanical properties as aluminium alloy, weather and corrosion resistance as well as perfect integration with the cabinet thank to the wide range of colours available.
The double barb tool operated cam lock is suitable for applications which do not require a high security level, with the guarantee that the most common budget lock keys like triangle or square keys cannot be used. It is then the perfect choice for food industry equipment, stainless steel doors, technical compartments in machinery, control panels of medical equipment, digital signage or agricultural machinery.
| Check out all the videos by clicking on the icon below |  |
Synthetic view
| Key type | |
|---|---|
| Manufacturing material | Die-cast metal |
| Fixing hole | |
| Length | |
| Internal mechanism | |
| Finishing | Nickel plating |
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Latch (spring lever), Personalized, Straight cam |
| Product type | |
| Fixing | Nut |
| Insert shape |
