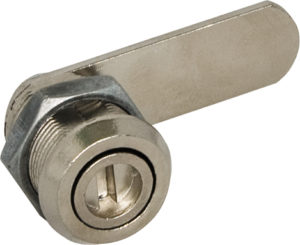

Screwdriver operated camlock
FEATURES
- The compression mechanism provides good protection from vibration and prevents the cam from accidental rotation. To open you just need to press with a screwdriver.
- The installation of an inner O-ring protects from the ingress of dirt and water under IP65 regulation.
- If you choose to install the item SMAN04903, you will have a practical handle to open and close.
- The adapter SVAR03715 allows to change the fixing hole for the quarter turn lock.
PRODUCT CODES
| Ø | L | CODE for NUT | NOTES |
| 19 | 20 | 163495 | 90°, Imprint, TC |
| Ø | L | CODE for FORK | NOTES |
| 19 | 20 | 166559 | 90°, imprint, TC, fork for thicknesses 1, 2, 5, 6, 9, 10 mm |
| 19 | 20 | 165560 | 90°, impression, TC, fork for thicknesses 3, 4, 7, 8, 11, 12 mm |
WHAT'S INCLUDED
- Cam square 7 mm, working length 43 mm
- Nut
OPTIONALS
- Straight cams with different working length
- Cranked cams with different cranks and working length
- Notched cams
- Multi-point cams
- Actuators
- Washers and gaskets
- Adapter SVAR03715
- Handle SMAN04903
- Alternative finishes
- OR for IP65 protection
CATEGORIES
The quarter-turn flat-tip screwdriver budget lock is composed of a zinc alloy body inside of which is a spring-loaded cut-out rotor that, moved by a simple screwdriver cut-out, rotates determining opening or closing. The 7-mm square terminal allows straight, cranked, or hook cams to be installed, and multi-point cams for rod movement or multi-point and centralized locking actuators to be applied.
The quarter turn cam lock can also be manufactured in technopolymer, glass-fiber plastic featuring the same mechanical properties as aluminium alloy, weather and corrosion resistance as well as perfect integration with the cabinet thanks to the wide range of colours available.
The coin/screwdriver operated camlock is suitable for doors which cannot be accidentally opened by wind, vibrations or collisions. It is the perfect choice for inspection hatches, forklifts, HO.RE.CA equipment or switch boards.
Synthetic view
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Latch (spring lever), Personalized, Straight cam |
|---|---|
| Key type | |
| Fixing hole | |
| Finishing | Nickel plating |
| Fixing | Nut |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Product type | |
| Insert shape |
