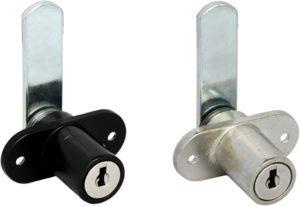

Cam lock with double flange for screw fixing
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 16,5 | 21 | 163438 | double flange, 180°, 2 key removal positions |
| 16,5 | 21 | 163439 | double flange, 180°, 2 key removal positions, black |
SUPPLIED.
- 2 brass keys SCHG05082
- Cam piercing: square 7, working length 43
- Nickel-plated trim bushing
OPTIONALS
- Folding capped keys
- Alternative finishes
CATEGORIES
The plate-cylinder camlock with double flange features a 5-plate central barrel encased in a zinc alloy housing.
The double flange can be fixed to the piece of furniture using 2 screws. The cam rotation determines the locking or the unlocking.
The body and the barrel of the camlock are made of zinc alloy, the cam is made of steel.
The square 7 mm cam connection allows to install several straight, cranked or hooked cams. The 21 mm cylinder is suitable for installation on wood and metal.
The cam lock for screw fixing is the perfect choice for office furniture, metal doors, drawers, enclosures, shop furniture.
Synthetic view
| Key type | |
|---|---|
| Blocking system | |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | |
| Key extraction positions | |
| Finishing | Black with nickel-plated rotor, Nickel plating |
| Fixing | Rivet-to-fix, Screws |
| Where to install | |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Direction of rotation | |
| Lock type | |
| Product type |
You may also like…
-

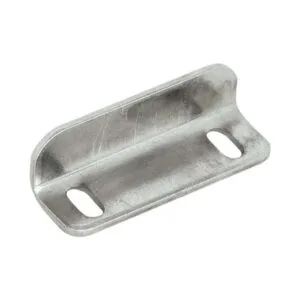

Striker plate
