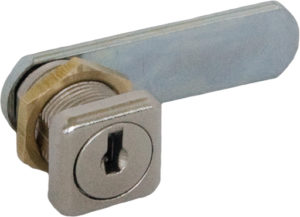

Universal square head lock
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 15 | 16 | 165821 | 90° clockwise, 1 extraction, square head |
SUPPLIED.
- 2 brass keys SCHG05082
- Q7 cams with 7mm squared attachment hole (Q7) int. 40
- Nut
OPTIONALS
- Cranked cams
- Multi-point cams
- Actuators
- Washers and gaskets
- Glass door plates
- Keyed alike (KA)
- Folding capped keys
- Alternative finishes
- Horseshoe clips
- Master key (MK)
CATEGORIES
The rim cam lock with square head is one of the most popular locks in all areas. The nickel-plated brass key allows the 5-plate-cylinder rotor located inside a zinc alloy box called a stator, bushing or body to be moved. The double D fixing hole prevents the rotation of the cam lock body when installed. The cam rotation determines the locking or the unlocking.
Body and barrel are made of zinc alloy, while the cam is made of steel. The 7-mm square can connection terminal also allows installation of a variety of straight, cranked and hook cams, as well as multi-point cams for moving translating rods (up and down). The fully threaded body allows attachment by nut, but also by horseshoe clip or clip for quick installation on steel, aluminum or plastic sheets.
Rim cam locks are ideal for installations on cash registers, displays, office furniture, metal doors, flaps, carpentry items, sheet metal boxes, vending and car-wash systems, machinery, and actuator panels.
Synthetic view
| Where to install | Standard Cam Locks, Hinged doors, Drawers and chests of drawers |
|---|---|
| Key type | |
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Straight cam |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | |
| Key extraction positions | |
| Finishing | Nickel plating |
| Fixing | Nut |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Direction of rotation | |
| Lock type | |
| Product type |
