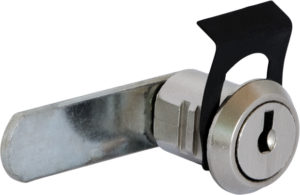

Universal Plate-Cyilnder Cam Lock Ø 17
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 17 | 20 | 163100 | 90° clockwise, 1 key extraction positions |
| 17 | 20 | 163150 | 180°, 2 key extraction positions |
WHAT'S INCLUDED
- 2 brass keys SCHG05082
- Cam piercing: square 7mm, working length 43mm
- Horseshoe clip
OPTIONALS
- Straight cams various working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Actuators
- Master key (MK)
- Keyed alike (KA)
- Folding capped keys
- Alternative finishes
CATEGORIES
The universal rim lock with a plate-cylinder mechanism is among the most popular locks. The nickel-plated brass key moves the central 5-plate-cylinder rotor placed inside a zinc alloy box called a stator, bushing or body. The diameter is milled on two opposing sides (side plates) forming a double D to prevent rotation of the cam lock in the installation housing. The cam rotation determines the locking or the unlocking.
Body and barrel are made of zinc alloy, while the cam is made of steel. The 7-mm square terminal also allows installation of a variety of straight, cranked and hook cams, as well as multi-point cams for translating rod movement (up and down). The many variants available allow different rotations directions, door thicknesses from 0.5 to 27 mm, and key removal in open and closed (or only one of the two cases). Lock fixing is easy thanks to the horseshoe clip for quick installationon steel, aluminum, or plastic doors and drawers.
Universal cam locks are ideal for installations in office furniture, metal doors, hatches, carpentry items, sheet metal boxes, vending and carwash systems, machinery, pulpits, and actuator panels.
Synthetic view
| Where to install | |
|---|---|
| Key type | |
| Blocking system | Cam for translating rods, Cranked cam, Hook cam, Straight cam |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | |
| Key extraction positions | |
| Fixing | Horseshoe clip |
| Finishing | Nickel plating |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Direction of rotation | |
| Lock type | |
| Product type |
