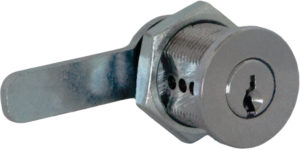

Universal pin tumbler lock with centered rotor (90°)
FEATURES
- 90° clockwise or 90° counterclockwise versions can be made, for minimum quantities of 500 pieces per model.
- Custom dimensions are also possible for a min. order quantity of 500 pcs.
PRODUCT CODES
| Ø | aL | CODE | NOTES |
| 20 | 20 | 60500 | 90° clockwise, 2 key extraction positions |
WHAT'S INCLUDED
- 2 brass keys SCHG05060
- Cam working length 38 mm
- Nut
- Keyed different (KD)
OPTIONALS
- Straight cams with various working lengths
- Cranked cams with various cranks and working lengths
- Notched cams
- Washers and gaskets
- Keyed alike (KA)
- Alternative finishes
CATEGORIES
The universal pin tumbler lock with standard key and special jig features a single side plate and 90° rotation that can be customized clockwise or counterclockwise upon request. As typical of all models in the universal pin tumbler category, it has an internal mechanism that is activated when the key is inserted, which aligns the internal pins according to a precise position, freeing the barrel and unlocking the opening or closing movement.
Both the pins and the outer body are made of brass; the oval-mounted terminal allows installation of straight, cranked and hook cams, as well as multi-point cams for moving translating rods (up/down), or actuators for multiple and centralized locking of drawer units.
The universal standard key pin tumbler lock with special jig is made for special applications where a housing with unconventional drilling is required, even outdoors, such as carpentry artifacts, safe boxes or special machinery.
Synthetic view
| Where to install | Standard Cam Locks, Hinged doors, Drawers and chests of drawers |
|---|---|
| Key type | |
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Straight cam |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | |
| Key extraction positions | |
| Finishing | Chrome-plated |
| Fixing | Nut |
| Length | |
| Manufacturing material | Brass |
| Internal mechanism | |
| Direction of rotation | |
| Lock type | |
| Product type |
