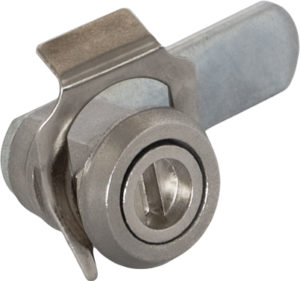

Screwdriver operated camlock with clip fixing
FEATURES
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 19 | 20 | 166559 | 90°, imprint, TC, fork pos. 1, 2, 5, 6, 9, 10 |
| 19 | 20 | 165560 | 90°, imprint, TC, fork pos. 3, 4, 7, 8, 11, 12 |
SUPPLIED.
- Cam piercing: square 7, working length 43
- Horseshoe clip
OPTIONALS
- Straight cams with several working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Actuators
- Budget lock key
- Adapters
- Alternative finishes
CATEGORIES
The quarter-turn flat-tip screwdriver budget lock is composed of a zinc alloy body inside of which is a spring-loaded budget lock rotor that, moved by a simple screwdriver cutter, rotates, determining opening or closing.
The 7-mm square terminal also allows the installation of a variety of straight, cranked, or hook levers, not to mention the possibility of applying multi-point cams for rod movement.
The zamak box, alternatively, can also be made of technopolymer, a special “metal plastic” that provides mechanical performance on par with aluminum alloy, resistance to weathering and corrosion, as well as perfect integration with the manufactured product thanks to the wide range of colors available. The simple impression latch is suitable for applications where it is necessary to lock the sash in a certain position without allowing it to open due to external causes such as wind, vibration, or shock. Thanks to the clip (a.k.a. fork), which allows for quick installation, it finds its ideal application in inspection hatches or manholes, on earthmoving machines, industrial machinery, forklift compartments, HO.RE.CA machines, in holders inside campgrounds and common areas, or in telecommunications panels.
| Check out all the videos by clicking on the icon below |  |
Synthetic view
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Latch (spring lever), Straight cam |
|---|---|
| Fixing hole | |
| Finishing | Nickel plating |
| Fixing | Horseshoe clip |
| Where to install | |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Product type | |
| Horse-shoe clip | Thickness (door, drawer): 3, 4, 7, 8, 11, 12 mm, Thickness (door, drawer, etc.): 1, 2, 5, 6, 9, 10 mm – Standard |
| Key type | |
| Insert shape |
