Universal Plate-Cyilnder Cam Lock Ø 17

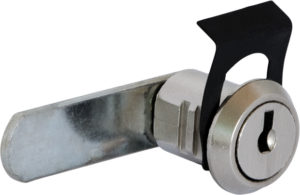

Universal Wafer Tumbler Camlock to be applied with plate-cylinder cam locks is among the most popular locks. The 7-mm square terminal also allows a variety of straight, cranked and hook cams to be installed.
Available in both keyed different(KD) and keyed alike(KA).
Quick installation with horseshoe clip.
Unit min. Industry: 50
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 17 | 20 | 163100 | 90° clockwise, 1 key removal position | Industry | 50 |
| 17 | 20 | 163150 | 180°, 2 key removal positions | Industry | 50 |
EQUIPMENT INCLUDED
- 2 brass keys SCHG05082
- Cam piercing: square 7mm, working length 43mm
- Horseshoe clip
OPTIONALS
- Straight cams various working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Master key (MK)
- Keyed alike (KA)
- Folding capped keys
- Alternative finishes
CATEGORIES
The universal rim lock with a plate-cylinder mechanism is among the most popular locks. The nickel-plated brass key moves the central 5-plate-cylinder rotor placed inside a zinc alloy box called a stator, bushing or body. The diameter is milled on two opposing sides (side plates) forming a double D to prevent rotation of the cam lock in the installation housing. Through operation of the rear cam lock, locking or opening of the cam lock is determined.
Body and barrel are made of zinc alloy, while the cam is made of steel. The 7-mm square terminal also allows installation of a variety of straight, cranked and hook cams, as well as multi-point cams for translating rod movement (up and down). The many variants available allow different rotations directions, door thicknesses from 0.5 to 27 mm, and key removal in open and closed (or only one of the two cases). Lock fixing is easy thanks to the horseshoe clip for quick installationon steel, aluminum, or plastic doors and drawers.
Universal cam locks are ideal for installations in office furniture, metal doors, hatches, carpentry items, sheet metal boxes, vending and carwash systems, machinery, and control panels.
Summary framework
| Where to install | Hinged doors, Standard Cam Locks |
|---|---|
| Key type | Standard key (not reversible) |
| Blocking system | Straight cam, Hook cam, Cranked cam, Sliding rods |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 17 |
| Key extraction positions | Only with lock closed (1), With lock closed and open (2) |
| Fixing | Horseshoe clip |
| Finishing | Nickel plating |
| Length | 20 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | Wafer tumbler camlocks |
| Direction of rotation | 180°, 90° clockwise – Right Hand |
| Lock type | Lever Locks, Universal locks |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum |
