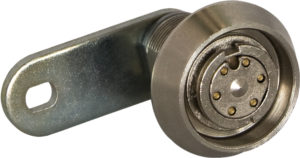

Reprogrammable Cam Lock
The reprogrammable lock with Jack key is distinguished by the radial position of the brass pins and the ability to change the 5 combinations countless times, and at will.
A practical and secure solution suitable for safely locking applications where frequent changes of users are required.
FEATURES
- The cam has double holes to allow both horizontal and vertical mounting.
- The camlock can always be reprogrammed using the dedicated key, choosing among the 5 keyings available for each camlock.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 19 | 22 | 100755KD | 90° clockwise/ counterclockwise, 1 key extraction positions | Retail | 10 |
EQUIPMENT INCLUDED
- 5 keys SCHD05720C
- 1 key for keying change SCHD05720R
- Cam working length 40 mm (choose between horizontal and vertical version)
- Nut
- Pliers-safe oversize rosette
- Keyed different (KD)
- Security card for key duplication
OPTIONALS
- Straight cams with various working lengths
- Cranked cams with various cranks and working lengths
- Notched cams
- Washers and gaskets
- Keyed alike (KA)
- Additional user jack keys or programming keys
CATEGORIES
The rekeyable lock with Jack key is distinguished by the radial position of the brass pins and the ability to change the 5 combinations countless times and at will. The manager can use the re-programming key (door in the opening position) also as a master key. The unmistakable ergonomic outline of the red key can only be duplicated at our company, providing a high degree of security as well as serving as a practical handle. The barrels also have an overhang on the front to counter break-in techniques such as, for example, the use of a drill.
The die-cast metal housing is protected by a steel pliers-safe rosette. The key can be removed only in the closing position, making it impossible to forget the door open. Its rear oval mount also allows the installation of a variety of straight, cranked and hook cams, not to mention the possibility of applying multi-point cams for rod movement or actuators for multiple and centralized locking.
The reprogrammable special key “cam lockjack” is suitable for securely locking applications where frequent changes of users are needed, such as in theentertainment market, coffee machines, automatic checkouts, or key boxes used by maintenance technicians.
Summary framework
| Key type | Red pin key (Jack) |
|---|---|
| Fixing hole | 19 |
| Finishing | Nickel plating |
| Length | 22 |
| Manufacturing material | Die-cast metal |
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Latch (spring lever), Straight cam |
| Internal mechanism | Pin tumbler cylinder |
