Lock for filing cabinets

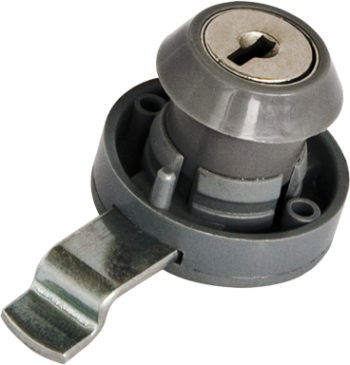

The rim lock for filing cabinets consists of a round base made of gray plastic material into which a cranked deadbolt slides, operated by the movement of the key, which can be made of nickel-plated brass or with a fixed or folding resin handle.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 17 | 20 | 240051 | 340°, 1 key extraction positions, with fixing holes | Retail | 24 |
EQUIPMENT INCLUDED
- 2 brass keys SCHG05082
- Bolt SPAL02361
- Rosette
OPTIONALS
- Capped keys
The rim lock for filing cabinets consists of a round base made of gray plastic material into which a cranked deadbolt slides, operated by the movement of the key, which can be made of nickel-plated brass or with a fixed or folding resin handle.
The cylinder features a wafer tumbler mechanism, also called plate-cylinder, available in either KD (keyed different), KA (keyed alike) or MK (master key system, or pass-partout). The cylinder hole on the door is finished with a plastic finishing bushing.
The signboard lock is ideal for metal doors because of its self-engaging attachment, or on iron furniture doors such as on a horizontal metal drawing rack, on a metal hanging file folder, and especially on signboard cabinets, usually made of metal, characterized by a single lock for each box, ideal for storing records and documents.
Summary framework
| Key type | Standard key (not reversible) |
|---|---|
| Blocking system | Through axle |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 17 |
| Key extraction positions | Only with lock closed (1) |
| Finishing | Gray, Nickel plating |
| Fixing | Rivet-to-fix, Screws, Snap-in fix |
| Where to install | Drawers and chests of drawers |
| Length | 20 |
| Manufacturing material | Die-cast metal, Plastic |
| Internal mechanism | Wafer tumbler camlocks |
| Direction of rotation | 340° |
| Lock type | Lifting pin locks (actuator) |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum |
