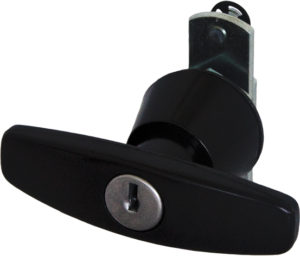

T-handle with lock, black
Handle T handle moves the cam or vertical rods, is made of die-cast metal, and is finished with black paint and a stainless steel cap to protect the barrel. The terminal allows installation of a variety of straight, cranked and hook cams as well as multi-point cams for rods.
Unit min. Retail: 10
Unit min. Industry: 300
FEATURES
- Also available with dust cover blade (dust cover flap)
- Type B drilling jig - minimum order quantity 1000 pcs. Ask customer service for more information.
PRODUCT CODES
| L | CODE | NOTES | Channel | Minimum qty |
| 80 | 220051 | 90°, 2 key extraction positions | Industry | 300 |
EQUIPMENT INCLUDED
- 2 brass keys SCHG05082
- SBIL02160 two-point cam with pins and seeger
- Cam SLEP02166
- Nut SDAD00810
- Under-nut notched washer MRON02595
OPTIONALS
- Straight cams various working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Keyed alike (KA)
- Plastic key-head covers
- Alternative finishes
- Master key (MK)
Handle T handle moves the cam or vertical rods, is made of die-cast metal, and is finished with black paint and a stainless steel cap to protect the barrel. The terminal allows installation of a variety of straight, cranked and hook cams as well as multi-point cams for rods.
The handle can also be made of technopolymer, a special “metal plastic” that provides mechanical performance on par with aluminum alloy, resistance to weathering and corrosion, as well as perfect integration with the finished product, thanks to the wide range of colors available.
The T-handle is the perfect choice for switch panels, metal cabinets, tailgates of off-road vehicles, machinery or metal wagons.
Summary framework
| Key type | Standard key (not reversible), Handle or knob |
|---|---|
| Blocking system | Straight cam, Hook cam, Cranked cam, Sliding rods, Personalized |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 21 |
| Key extraction positions | With lock closed and open (2) |
| Finishing | Black |
| Fixing | Nut |
| Where to install | Hinged doors |
| Length | 26 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | Wafer tumbler camlocks |
| Product type | Locks |
| Direction of rotation | 90° clockwise – Right Hand |
| Jig | Jig A, Jig B (minimum 1000 pcs.) |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum |
Over 1300 Locks
100% Made in Italy
Fast delivery
International consultants
High customization
The OMR Locks product range is so wide that it is difficult to summarize it completely. Several hundred models in production-and available in the catalog-meet very different needs and are distinguished by technical care, quality of materials and design. Each model is available in multiple variants and can be customized to the customer's requirements: design and production are handled directly in-house, which is why OMR has been making customized security solutions for more than 50 years. For those with specific commercial or professional needs, practical lock sets are also available, reassortmentable selections of the most popular models, offered in cases that are elegant and convenient to use.
