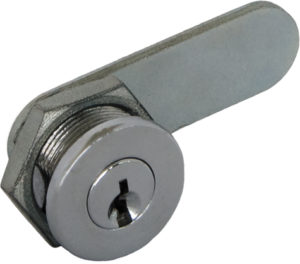

Universal pin tumbler lock with centered rotor (90°, -90°)
FEATURES
- 90° clockwise or 90° counterclockwise versions can be made, for minimum quantities of 500 pieces per model.
- Custom dimensions are also possible for a min. order quantity of 500 pcs.
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 20 | 14,5 | 64650 | 90° + 90°, 1 center extraction positions |
| 20 | 18 | 62500 | 90° + 90°, 1 center extraction positions |
| 20 | 21 | 62550 | 90° + 90°, 1 center extraction positions |
| 20 | 26 | 62600 | 90° + 90°, 1 center extraction positions |
| 20 | 31 | 62650 | 90° + 90°, 1 center extraction positions |
| 20 | 36 | 62700 | 90° + 90°, 1 center extraction positions |
| 20 | 41 | 62750 | 90° + 90°, 1 center extraction positions |
SUPPLIED.
- 2 brass keys SCHG05060
- Q7 cam with 7mm squared attachment hole (Q7), working length 43mm
- Nut
- Keyed different (KD)
OPTIONALS
- Straight cams with various working lengths
- Cranked cams with various cranks or working lengths
- Notched cams
- Multi-point cams
- Actuators
- Keyed alike (KA)
- Alternative finishes
- Washers and gaskets
CATEGORIES
The standard universal pin tumbler lock with centered rotor and dual direction of rotation (90° clockwise and 90° counterclockwise with key extraction in central positions only). As typical of all models in the universal pin tumbler category, it has an internal mechanism that is activated when the key is inserted, which aligns the internal pins according to a precise position, freeing the barrel and unlocking the opening or closing movement. Pin-cylinder cam locks are the premium version of their plate-cylinder counterparts: high-quality materials, greater resistance to burglary attempts, elegant design, and a precise internal mechanism determine their value.
Both the pins and the outer body are made of brass; the 7-mm square terminal also allows installation of a variety of straight, cranked and hook cams, as well as multi-point cams for moving translating rods (up/down), or actuators for multiple and centralized locking of drawer units.
The standard universal pin tumbler lock with centered rotor differs from the model with off-center (standard) rotor only in the position of the rotor relative to the lock body. It is suitable for outdoor applications such as automation, fuel dispensers or in the vending industry.
Synthetic view
| Where to install | Standard Cam Locks, Hinged doors, Drawers and chests of drawers |
|---|---|
| Key type | |
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Straight cam |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | |
| Key extraction positions | |
| Finishing | Nickel plating |
| Fixing | Nut |
| Length | |
| Manufacturing material | Brass |
| Internal mechanism | |
| Direction of rotation | |
| Lock type | |
| Product type |
