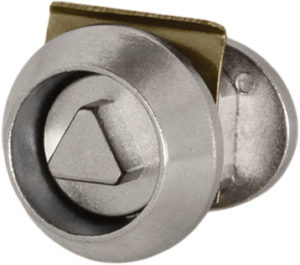

Tool operated camlock – 5 mm Triangle
FEATURES
- The compression mechanism provides good protection from vibration and prevents the cam from accidental rotation. Press with the key to unlock.
- The installation of an inner O-ring protects from the ingress of dirt and water under IP65 regulation.
- If you choose to install the item SMAN04903, you will have a practical handle to open and close.
- The adapter SVAR03715 allows to change the fixing hole for the quarter turn lock.
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 19 | 12 | 165651 | 180° |
SUPPLIED.
- Cam piercing: square 7, working length 13
- Horseshoe clip
OPTIONALS
- Straight cams with several working lengths
- Cranked cams
- Notched cams
- Budget lock key
The quarter-turn triangular budget lock consists of a zinc alloy body inside which is a spring-loaded budget lock rotor that, moved by a key, rotates, determining opening or closing. The radius of rotation of this lock is 180°. The 7-mm square terminal allows for the installation of a variety of straight, cranked, or hook levers, and the application of Multi-point cams for rod movement or actuators for multi-point and centralized locking.
The quarter turn cam lock can also be manufactured in technopolymer, glass-fiber plastic featuring the same mechanical properties as aluminium alloy, weather and corrosion resistance as well as perfect integration with the cabinet thanks to the wide range of colours available.
Budget locks are suitable for applications where high security is not required, but simple access management is sufficient, such as caisson covers, machine tool inspection compartments, electrical actuator panels, technical compartments in shopping malls, kiosks, gasoline pumps, or fuel dispensers.
Synthetic view
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Latch (spring lever), Personalized, Straight cam |
|---|---|
| Key type | |
| Insert shape | |
| Fixing hole | |
| Fixing | Horseshoe clip |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Product type | |
| Finishing | Nickel plating |
| Where to install |
