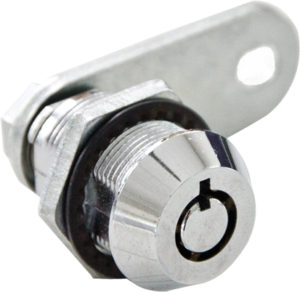

RPT Cam Lock
FEATURES
- The cam has double holes to allow both horizontal and vertical mounting.
PRODUCT CODES
| Ø | L | CODE | NOTES |
| 19 | 22 | 100852 | 90° clockwise, 1 key extraction positions |
SUPPLIED.
- Two brass RPT keys SCHG05105
- AS lever int. 40 mm
- Nut
- Under-nut washer
- Keyed different (KD)
OPTIONALS
- Straight cams with various working lengths
- Cranked cams with various cranks and working lengths
- Notched cams
- Washers and gaskets
- Keyed alike (KA)
- Additional RPT keys
CATEGORIES
The cylinder features ridial pins and it is operated by a RPT (radial pin tumbler) key. The tubular key can be removed only in the locking position, thus ensuring higher security and serving as a practical handle. The housing made of chrome plated die.cast metal features a tapered shape to prevent lockpicking using pliers.
The cam connection allows to install several straight cams, cranked cams or notched cams, as well as 2-point cams for rods or actuators for central locking systems.
The RPT Cam Lock is the perfect choice for safe boxes, lift compartments, wine fridges, vending machines, gaming machines, tourniquets, concealed safes, gun holders on military vehicles.
Synthetic view
| Where to install | |
|---|---|
| Key type | |
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Straight cam |
| Keying | |
| Fixing hole | |
| Key extraction positions | |
| Finishing | Chrome-plated, Nickel plating |
| Fixing | Nut |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Direction of rotation | |
| Lock type | |
| Product type |
