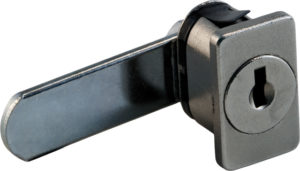

Cam lock with oval fixing hole
PRODUCT CODES
| Ø | FIXING | CODE | NOTES |
| 12,7 | horseshoe clip | 161301 - minimum 1000 pcs. | black, nickel-plated rotor |
| 12,7 | spring | 163470 - minimum 1000 pcs. | black, nickel-plated rotor |
| 12,7 | horseshoe clip | 163450- minimum 1000 pcs. | painted black |
| 12,7 | spring | 163471- minimum 1000 pcs. | painted black |
| 12,7 | horseshoe clip | 161300 | nickel-plated |
| 12,7 | spring | 161352 | nickel-plated |
SUPPLIED.
- 2 brass keys SCHG05082
- Cam int. 43
- Snap-in fix
OPTIONALS
- Straight cams with several working lengths
- Cranked cams
- Notched cams
- Multi-point cams
- Actuators
- Horseshoe clips
- Plastic key-head covers
- Alternative finishes
- Keyed alike (KA)
- Master key
CATEGORIES
The cam lock with oval fixing hole is used on swinging doors or sashes and can mount straight, cranked and hook cams, multi-point cams, and drawer actuators. Because of its characteristic shape, it is used in the furnishing of offices, studios, workshops, and laboratories.
Synthetic view
| Key type | |
|---|---|
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Latch (spring lever), Personalized, Straight cam |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | |
| Key extraction positions | |
| Finishing | Black, Black with nickel-plated rotor, Nickel plating |
| Fixing | Horseshoe clip, Snap-in fix |
| Where to install | |
| Length | |
| Manufacturing material | Die-cast metal |
| Internal mechanism | |
| Direction of rotation | |
| Lock type | |
| Product type |
