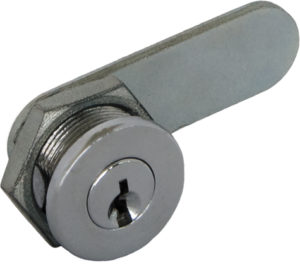

Universal pin tumbler lock with centered rotor (90°, -90°)
The standard universal key pin tumbler lock with centered rods differs from the model with an off-center (standard) rotor only in the position of the rotor in relation to the lock body.
It is suitable for outdoor applications such as automatisms, fuel dispensers, or in the vending industry.
FEATURES
- 90° clockwise or 90° counterclockwise versions can be made, for minimum quantities of 500 pieces per model.
- Custom dimensions are also possible for a min. order quantity of 500 pcs.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 20 | 14,5 | 64650 | 90° + 90°, 1 key removal position | Industry | 300 |
| 20 | 18 | 62500 | 90° + 90°, 1 key removal position | Industry | 300 |
| 20 | 21 | 62550 | 90° + 90°, 1 key removal position | Industry | 300 |
| 20 | 26 | 62600 | 90° + 90°, 1 key removal position | Industry | 300 |
| 20 | 31 | 62650 | 90° + 90°, 1 key removal position | Industry | 300 |
| 20 | 36 | 62700 | 90° + 90°, 1 key removal position | Industry | 300 |
| 20 | 41 | 62750 | 90° + 90°, 1 key removal position | Industry | 300 |
EQUIPMENT INCLUDED
- 2 brass keys SCHG05060
- Q7 cam with 7mm squared attachment hole (Q7), working length 43mm
- Nut
- Keyed different (KD)
OPTIONALS
- Straight cams with various working lengths
- Cranked cams with various cranks or working lengths
- Notched cams
- Multi-point cams
- Actuators
- Keyed alike (KA)
- Alternative finishes
- Washers and gaskets
CATEGORIES
The standard universal pin tumbler lock with centered barrel and dual direction of rotation (90° clockwise and 90° counterclockwise with key extraction only in the middle position).
As typical of all models in the universal pin tumbler category, it has an internal mechanism that is activated when the key is inserted, which aligns the internal pins according to a precise position, freeing the barrel and unlocking the opening or closing movement. Pin-cylinder cam locks are the premium version of their plate-cylinder counterparts: high-quality materials, greater resistance to burglary attempts, elegant design, and a precise internal mechanism determine their value.
Both the pins and the outer body are made of brass; the 7-mm square terminal also allows installation of a variety of straight, cranked and hook cams, as well as multi-point cams for moving translating rods (up/down), or actuators for multiple and centralized locking of drawer units.
The standard universal pin tumbler lock with centered rotor differs from the model with off-center (standard) rotor only in the position of the rotor relative to the lock body. It is suitable for outdoor applications such as automatisms, fuel dispensers or in the vending industry.
Summary framework
| Where to install | Standard Cam Locks, Hinged doors, Drawers and chests of drawers |
|---|---|
| Key type | Standard key (not reversible) |
| Blocking system | Cam for translating rods, Commando for drawer units, Cranked cam, Hook cam, Straight cam |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 20 |
| Key extraction positions | Central position only (c) |
| Finishing | Nickel plating |
| Fixing | Nut |
| Length | 14,5, 18, 21, 26, 31, 36, 41 |
| Manufacturing material | Brass |
| Internal mechanism | Pin tumbler cylinder |
| Direction of rotation | 90° clockwise + 90° counterclockwise |
| Lock type | Lever Locks, Lifting pin locks (actuator), Universal locks |
| Product type | Accessories |
