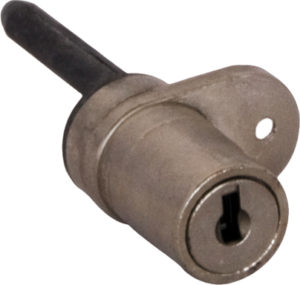

Pedestal lock with single flange
The pedestal lock for central locking systems features a plate-cylinder barrel encased in a zinc alloy housing. The flange can be fixed to the piece of furniture using screws.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 17 | 21 | 163481 | single horizontal flap | Retail | 24 |
EQUIPMENT INCLUDED
- 30 mm lifting pin
- 2 brass keys SCHG05082
- Rosette, nickel plated
OPTIONALS
- Folding capped keys
- Plastic key-head covers
- Alternative finishes
- Anti-tilt devices
- Keyed alike
- Passepartout arrangement
The pedestal lock for central locking systems features a plate-cylinder barrel encased in a zinc alloy housing. The flange can be fixed to the piece of furniture using screws. By actuating the rear pin, also known as the actuator, multiple locking or opening of drawers is determined.
The body and barrels of the front lock for multiple locking of drawers are made of zinc alloy, and the pin of galvanized steel. The 21 mm cylinder housing enables the installation on wooden or metal furniture and the horizontal model is also available. The anti-tilt devices SVAR04744 and SVAR04800 are available to complete the installation set of the pedestal.
The pedestal lock for central locking is the perfect choice for office pedestals, wooden pedestals, metal pedestals or workshop pedestals.
Summary framework
| Key type | Standard key (not reversible) |
|---|---|
| Blocking system | Commando for drawer units |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 17 |
| Key extraction positions | With lock closed and open (2) |
| Finishing | Nickel plating |
| Fixing | Rivet-to-fix, Screws |
| Where to install | Drawers and chests of drawers |
| Length | 21 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | Wafer tumbler camlocks |
| Direction of rotation | 180° |
| Lock type | Lifting pin locks (actuator) |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum, Wood and derivatives (MDF, HPL, etc.) |
