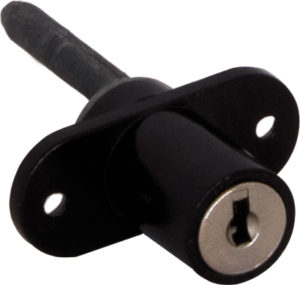

Pedestal lock with double flange – black
The lock to be applied for multiple locks is ideal for installation in office drawers, wood or metal drawers, or in workshop drawers. The double flange is drilled to allow the lock to be attached to the cabinet using screws or rivets.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum qty |
| 17 | 17 | 1633385 | double vertical flap | Industry | 300 |
| 17 | 17 | 163386 | horizontal double flap | Industry | 300 |
| 17 | 21 | 163435 | double vertical flap | Retail | 24 |
| 17 | 21 | 163436 | horizontal double flap | Industry | 300 |
| Detachable barrel version | |||||
| 17 | 21 | 165818 | double flap, horizontal | Industry | 300 |
EQUIPMENT INCLUDED
- 30 mm lifting pin
- 2 brass keys SCHG05082
- Black rosette
OPTIONALS
- Folding capped keys
- Plastic key-head covers
- Rosettes
- Alternative finishes
- Anti-tilt devices
- Keyed alike
- Passepartout arrangement
The lock that can be applied for multiple locks is ideal for installation in centralized office drawers, wood or metal drawers, or in workshop drawers.
The lock for multiple locks with double lugs and wafer-cylinder cam locks mechanism features a central 5-blade rotor placed inside a zinc alloy box called a stator, bushing, or body. The double flange is drilled to allow the lock to be attached to the cabinet using screws or rivets. By actuating the rear pin, also known as the actuator, multiple locking or opening of drawers is determined.
The body and barrels of the front lock for multiple locking of drawers are made of zinc alloy, and the pin of galvanized steel. The 21 mm cylinder housing enables the installation on wooden or metal furniture and the horizontal model is also available. The anti-tilt devices SVAR04744 and SVAR04800 are available to complete the installation set of the pedestal.
Summary framework
| Where to install | Drawers and chests of drawers |
|---|---|
| Key type | Standard key (not reversible) |
| Blocking system | Commando for drawer units |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 18 |
| Key extraction positions | With lock closed and open (2) |
| Finishing | Nickel plating |
| Fixing | Rivet-to-fix, Screws |
| Length | 17, 21 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | Wafer tumbler camlocks |
| Direction of rotation | 180° |
| Lock type | Lifting pin locks (actuator) |
| Product type | Locks |
| Orientation | Horizontal, Vertical |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum, Wood and derivatives (MDF, HPL, etc.) |
