Pedestal lock – Oval fixing hole

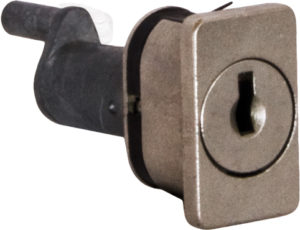

The oval pin tumbler lock consists of a stator inside of which, once the correct key is inserted, moves a plate-cylinder cam locks. Made of die-cast metal (zamak), it is equipped at the rear with a pin, called an actuator, that rotates 180°, operating the multiple and centralized locking system of the drawers. This model offers the possibility of adjusting the length of the pin, from a minimum of 10 to a maximum of 35 mm (+15 mm cam).
See the data sheet for more information.
Unit min. Retail: 24
Unit min. Industry: 300
FEATURES
Snap-in fix
PRODUCT CODES
| L | CODE | NOTES | Channel | Minimum qty |
| 10 | 161350 | 180°, horseshoe clip | Industry | 300 |
| 10 | 163432 | 180°, spring | Retail | 24 |
| 20 | 163154 | 180°, horseshoe clip | Industry | 300 |
| 35 | 161355 | 180°, horseshoe clip | Industry | 300 |
| 20 | 163433 | 180°, spring | Retail | 24 |
| 35 | 163434 | 180°, spring | Retail | 24 |
EQUIPMENT INCLUDED
- Horseshoe clip or snap-in fix
- Locking bar
- 2 brass keys: SCHG05082
OPTIONALS
- Keyed alike (KA)
- Folding capped keys
- Plastic key-head covers
- Horseshoe clip
- Alternative finishes
- Anti-tilt devices
- Master key (MK)
CATEGORIES
The oval pin tumbler lock consists of a stator inside of which, once the correct key is inserted, moves a plate-cylinder cam locks mechanism. Made of die-cast metal (zamak), it is equipped at the rear with a pin, called an actuator, that rotates 180°, operating the multiple and centralized locking system of the drawers. This model offers the possibility of adjusting the length of the pin, from a minimum of 10 to a maximum of 35 mm (+15 mm cam). Consult the data sheet for more information.
The lock body can be quickly attached, either through a horseshoe clip (or clip) or by snap spring. The special oval shape allows use even in confined spaces such as faceplates, profiles, trolleys and classifiers made of sheet metal or aluminum. Keys with folding handle are also available.
Anti-tilt plates can be supplied in combination, offering great safety by preventing drawers from accidentally opening when the toolbox is moved. The plates also prevent 2 drawers from opening at the same time, a situation that could cause the cart to fall.
The oval lock with actuators is used in archives, tabular, and drawer file cabinets.
Summary framework
| Where to install | Drawers and chests of drawers |
|---|---|
| Key type | Standard key (not reversible) |
| Blocking system | Actuator pin for drawer units |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 14,3 |
| Key extraction positions | With lock closed and open (2) |
| Finishing | Nickel plating |
| Fixing | Horseshoe clip, Snap-in fix |
| Length | 15 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | Wafer tumbler camlocks |
| Direction of rotation | 180° |
| Lock type | Lifting pin locks (actuator) |
| Product type | Locks |
| Length of the pin (see data sheet) | 10, 20, 35 |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum |
