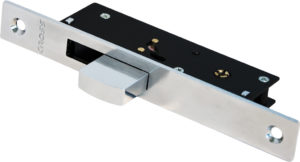

Overhead upright cross key lock
The cross key tilting deadbolt mortise lock features a cruciform cylinder, set in a steel and zinc alloy body, which moves a tilting deadbolt once the key is inserted.
A locking system that is an elegant and effective solution.
Unit min. Retail: 6
Unit min. Industry: 50
FEATURES
- Use the wrench with the notch on the handle facing upward.
- The key can be removed in the opening and closing position.
PRODUCT CODES
| CODE | REFERENCE | Channel | Minimum Qty |
| 100874 | Mast lock | Retail | 6 |
EQUIPMENT INCLUDED
- Three keys 70 mm MCHGYSP
- Counterplate
- Two black plastic trim bushings
OPTIONALS
The cross key tilting deadbolt mortise lock features a cruciform cylinder, set in a steel and zinc alloy body, which moves a tilting deadbolt once the key is inserted. The pins arranged in a cruciform pattern, along with the peculiar key shape, ensure a high level of security.
It is only necessary to drill a 12 mm hole for the keyhole and, thanks to the 19 mm key entrance, the application on narrow spaces is also possible. On your product the keyway will appear as a small hole, very discreet and elegant. Mounting on the door is extremely convenient and is done by two screws located on the face plate. Available both KA (keyed alike) and KD (keyed alike), the lock has a 25 mm steel tilting bolt offers good strength. This lock is easy to install and multifunctional, the range of cross-key locks consists of 5 models: rim cross key lock, mortice cross key lock, mortice cross key lock with swinging bolt or hook bolt, mortice cross key lock with double bolt.
The tilting deadbolt cross key lock is perfect for iron profiles. It is used, thanks in part to its small size, incontract furniture on display cabinets or doors, as well as in the construction industry for securing small grates and boiler rooms, and even in the naval sector. The bolt protrusion is 22 mm, allowing application also on store entrance doors and commercial furniture inside stations and airports.
Summary framework
| Key type | Cruciform Lock Keys |
|---|---|
| Blocking system | Deadbolt |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard |
| Key extraction positions | With lock closed and open (2) |
| Finishing | Chrome-plated |
| Fixing | Screws |
| Where to install | Sliding doors |
| Manufacturing material | Steel |
| Lock type | Deadbolt lock |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum, Wood and derivatives (MDF, HPL, etc.) |
