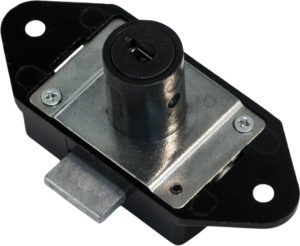

Lock with rotating rods Ø16 black
The lock with rotating rods, also known as a espagnolette or espagnolette lock, once the key is inserted into the rods, it allows multiple (3-point) and centralized locking through the movement of rods and a side bolts.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 16 | 21 | 240408 | 3-point, right-hand | Industry | 300 |
| 16 | 21 | 240406 | 3-point, left-hand | Industry | 300 |
| 16 | 28 | 240448 | 3-point, right.-hand or left-hand | Industry | 300 |
EQUIPMENT INCLUDED
- 2 brass keys SCHG05082
OPTIONALS
- Rosettes
- Plastic key-head covers
- Rods
- Keyed alike (KA)
- Master key (MK)
- Folding capped keys
The lock with rotating rods, also known as a espagnolette or espagnolette lock, once the key is inserted in the rods allows multiple (3-point) and centralized locking through the movement of rods and a side bolts. The special feature is in the movement of the rods, which is not by translation but rather by rotation, ensuring greater resistance and slight compression of the door when locking. Hooks are mounted on the rod end which, rotating driven by the key, engage in the sockets or brackets at the top or bottom of the sideboard. This particular rotary movement is reminiscent of the typical movement of the hands of flamenco dancers, called braceo, from which the appellation “a spagnoletta” was later derived.
The lock body is made of zinc alloy, the barrel features a plate-cylinder mechanism. Several accessories to complete the installation are available: half-round rods, upper and lower hooks, adjustable pegs, rod guides and rosettes. The key is made of nickel plated brass and it can optionally be equipped with a plastic folding cap in different finishes: black, grey, white, transparent or further customized colours. Detachable barrel core version allows extraction of the barrel containing the platelets and thus offering quick change of the combination. Thanks to the several cylinder lengths available, the installation is possible on different materials (wood, metal, HPL, melamine, MDF, HDF, etc.) and panel thickness.
The lock to be applied with rotating rods is commonly used by professionals, industries, and craftsmen for application in cabinets and office furniture with hinged doors and doors, and generally for all doors.
Summary framework
| Key type | Standard key (not reversible) |
|---|---|
| Blocking system | Rotating rods |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 16 |
| Key extraction positions | With lock closed and open (2) |
| Finishing | Black |
| Fixing | Screws |
| Where to install | Hinged doors |
| Length | 21, 28 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | Wafer tumbler camlocks |
| Door pushing way | Left, Right |
| Direction of rotation | 180° |
| Lock type | Rotary rod locks |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum, Wood and derivatives (MDF, HPL, etc.) |
