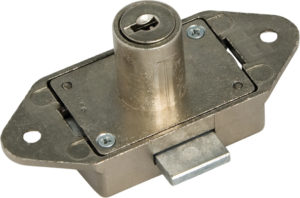

Lock with rotating rods Ø16
The cremone lock or espagnolette lock with rotating rods allows multiple (3-point) and centralized locking of cabinets with high doors. The movement of the rods is not by translation (up/down), but by rotation ensuring greater strength and slight compression of the door when locking.
FEATURES
- The removable barrel is available on request.
- Also available in 2-point or antique key version (patented)
- The espagnolette lock can also be made of technopolymer, a special "metal plastic" that provides mechanical performance on par with aluminum alloy, resistance to weathering and corrosion, as well as perfect integration with the article thanks to the wide range of colors available.
PRODUCT CODES
| Ø | L | ITEM NO. | NOTE | Channel | Minimum Qty |
| 16 | 21 | 240401 | 3-point, right-hand | Retail | 12 |
| 16 | 21 | 240403 | 3-point, left-hand | Industry | 100 |
| 16 | 28 | 240461 | 3-point, right.-hand or left-hand | Industry | 100 |
EQUIPMENT INCLUDED
- 2 brass keys SCHG05082
- Rosette
OPTIONALS
- Capped keys or folding capped keys
- Rotary rods SAST04040
- Hooks
- Press-in rod guides
- u-bolt
- Adjustable pin for rotary rod locks
- Fixing screws on door
The cremone lock or espagnolette lock with rotating rods allows multiple (3-point) and centralized locking of cabinets with high doors. The movement of the rods is not by translation (up/down), but by rotation ensuring greater strength and slight compression of the door when locking. On the rod ends are mounted the rods’ hooks, which rotate and, once activated by the key, engage the pins tumblers attached to the cabinet crossbeams.
The lock is made of zinc alloy, has a plate-cylinder cam locks, and numerous accessories are available to complete the lock: half-round rods, upper and lower hooks, adjustable pins, u-bolts, rod guides, and rosettes. The key is made of nickel plated brass and it can optionally be equipped with a plastic folding cap in different finishes: black, grey, white, transparent or further customized colours. Detachable barrel/cylinder version allows extraction of the barrel containing the platelets and thus modification of the combination. Thanks to the several cylinder lengths available, the installation is possible on different materials (wood, metal, HPL, melamine, MDF, HDF, etc.) and panel thickness. The lock to be applied with rotating rods is commonly used by professionals, industries, and craftsmen for application in cabinets and office furniture with hinged doors and doors, and doors in general.
Curiosity! the rotating movement of the hooks is reminiscent of the typical hand motion of flamenco dancers, called“braceo,” from which the nickname “a spagnoletta” was later derived.
Summary framework
| Key type | Standard key (not reversible) |
|---|---|
| Blocking system | Rotating rods |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout |
| Fixing hole | 16 |
| Key extraction positions | With lock closed and open (2) |
| Finishing | Nickel plating |
| Fixing | Screws |
| Where to install | Hinged doors |
| Length | 21, 28 |
| Manufacturing material | Die-cast metal |
| Internal mechanism | Wafer tumbler camlocks |
| Door pushing way | Left, Right |
| Direction of rotation | 180° |
| Lock type | Rotary rod locks |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum, Wood and derivatives (MDF, HPL, etc.) |
