lock for multiple locks with double lug (pin 40) and plate-cylinder cam locks (pin 40) mechanism
TECHNICAL DATA SHEET.

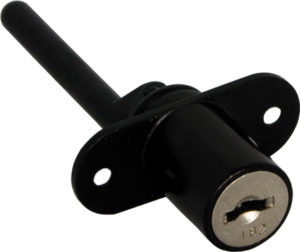

Pedestal lock with double flange – 40 mm pin

SKU: N/A Categories: , , , , , , , , ,

The pedestal lock for central locking systems is ideal for installation in office drawers, wooden or metal drawers, or in workshop drawers. In this version the pin is 40 mm long, while the standard one measures 30 mm.

Unit min. Retail: 24
Unit min. Industry: 300

This product is currently out of stock and unavailable.

Home > Catalog > Products > Locks > Detachable barrel locks > Pedestal lock with double flange – 40 mm pin
PRODUCT CODES
ØL ITEM NO.NOTEChannelMinimum Qty
1721165693horizontal flangeRetail24
1721165694vertical flapRetail24
EQUIPMENT INCLUDED
  • 2 double-entry brass capped keys MCHGYPA
  • Black rosette
  • 40 mm lifting pin
OPTIONALS
  • Folding capped keys
  • Plastic key-head covers
  • Rosettes
  • Alternative finishes
  • Anti-tilt devices
CATEGORIES
Banking and post office | Detachable barrel locks | Drawer locks | Hospitals and healthcare facilities | Industrial drawer locks | Locks for classifiers | Master key locks | Offices | Pivot locks | Professional furniture locks
REQUEST INFO ON THE FLY
CALL TO FLIGHT

Info al volo

The pedestal lock for central locking systems is ideal for installation in office drawers, wooden or metal drawers, or in workshop drawers. In this version the pin is 40 mm long, while the standard one measures 30 mm.

The pedestal lock for central locking systems features a plate-cylinder barrel encased in a zinc alloy double flange housing. The double flange can be fixed to the piece of furniture using 2 screws. The actuator operates the central locking system of drawers.

The body and barrels of the front lock for multiple locking of drawers are made of zinc alloy, while the 40 mm long pin is made of galvanized steel. The 21 mm housing enables the installation on wooden or metal furniture and the horizontal model is also available. The anti-tilt devices SVAR04744 and SVAR04800 are available to complete the installation set of the pedestal.



Summary framework

Where to install

Drawers and chests of drawers

Key type

Standard key (not reversible)

Blocking system

Commando for drawer units

Keying

Keyed alike (KA), Mixed Encryption (KD) – Standard, Passe-partout

Fixing hole

18

Key extraction positions

With lock closed and open (2)

Finishing

Black with nickel-plated rotor

Fixing

Rivet-to-fix, Screws

Length

21

Manufacturing material

Die-cast metal

Internal mechanism

Wafer tumbler camlocks

Direction of rotation

180°

Lock type

Lifting pin locks (actuator)

Product type

Locks

Orientation

Horizontal, Vertical

Materiale del supporto (legno, metallo, vetro, ecc)

Metal and aluminum, Wood and derivatives (MDF, HPL, etc.)
