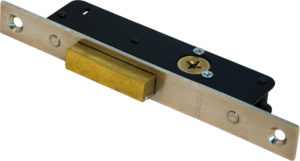

Cross-key mortise lock for narrow jambs
Cross-key mortise lock for narrow jambs
The cross key mortise lock is equipped with a cross-key cylinder installed in a steel and zinc alloy housing, which operates a bolt. T The pins arranged in a cruciform pattern, along with the peculiar key shape, ensure a high level of security.
FEATURES
- To correctly insert the key, the notch on the key bow must be upward.
- The key can be removed in the opening and closing position.
PRODUCT CODES
| ITEM NO. | REFERENCE |
| 100872 | Jamb lock, mortise lock |
EQUIPMENT INCLUDED
- Three keys 70 mm MCHGYSP
- Striker plate
- Two rosettes in black plastic
OPTIONALS
- Oversized Faceplate - Code DMTS0413
The cross key mortice lock is equipped with a cross-key cylinder installed in a steel and zinc alloy housing, which operates a bolt. T The pins arranged in a cruciform pattern, along with the peculiar key shape, ensure a high level of security.
A simple 12-mm bit is used to create the key entry, and thanks to the 14-mm key entry (the distance between the key entry and the edge of the mullion),application to narrow mullions is possible.The key entry appears as a small, very discreet hole, which is why it is also nicknamed the “nail key” precisely because it resembles the mark left on the wall by a nail. Fastening on the sash is extremely convenient, by means of two screws located on the face plate.
Available both KA (keyed alike) and KD (keyed mixed). Equipped with a 40 mm rectangular brass post, it offers good strength.
Easy to install and multifunctional, the range of pin locks consists of five variants: mortise, mullion only deadbolt, swinging deadbolt or hooked, mortise with double pin. The pin-key mortise lock is most suitable for aluminum profiles. It is used, thanks in part to its small size, incontract furniture on display cabinets or doors, and also in the construction industry for securing small gratings and sashes.
The bolt protrudes 9 mm and it allows the application on furniture for exhibitions and technical furniture for laboratories.
Summary framework
| Key type | Cruciform Lock Keys |
|---|---|
| Blocking system | Through axle |
| Keying | Keyed alike (KA), Mixed Encryption (KD) – Standard |
| Key extraction positions | With lock closed and open (2) |
| Finishing | Chrome-plated |
| Fixing | Screws |
| Where to install | |
| Manufacturing material | Brass, Steel |
| Lock type | |
| Product type | Locks |
| Materiale del supporto (legno, metallo, vetro, ecc) | Metal and aluminum, Wood and derivatives (MDF, HPL, etc.) |
